Brand Name : New Light
Model Number : SC APC
Certification : ISO ,ROSH
Place of Origin : China
MOQ : 1~100000
Price : 0.1~100
Supply Ability : 1000000
Delivery Time : 7 working days
Packaging Details : OPP bag + carton box
Payment Terms : T/T, Western Union, MoneyGram, Paypal
connector type : SC APC - SC APC
cable type : Simplex
cable diameter : 2.0 mm
Jacket material : LSZH
mode type : single mode
insertion loss : ≤ 0.3dB
wave length : 1310/1550
wavelength : 1310/1550nm
cable color : white
return loss : ≥65dB
length : can be customized
OEM/ODM : acceptable
package : 1 pcs/bag
2.0mm Optical Fiber Patch Cord , simplex G657B3 Type Single Mode Fiber Patch Cables
G657B3 cable use the LSZH material , it will be more anti-bending . the diameter of the bending can be 5mm . the fiber cable can be protected very well and will not be broken when wired .
the bend radius of G657B3 fiber optic cable is smaller than G657B2/G657A2/G657A1/G652D cable . it is can meet your requirements when it need to bend into small shape when you distribute the cable .
The color of G657B3 fiber cable can be white and yellow , and also can be customized according to your request .
Also it will be more convenient for distribute the cable and wire the cable in 1U box and other equipment .
It is very hot sale in the market now . can meet the demands of Europe market and most of requirements .
The connectors can any connector as your requirements . The normal connectors are : SC / LC /ST/FC/MU/ MTRJ/ MPO .
And connector mode type : APC / UPC .
Mode type : single mode
Technical Parameter
products name | 2.0mm Optical Fiber Patch Cord , simplex G657B3 Type Single Mode Fiber Patch Cables |
mode type | single mode |
cable count | simplex ( can be duplex) |
core type | G657B3 |
cable color | White ( can be customized according to your request ) |
cable diameter | 2.0mm |
patch cord length | 1 meter ( can be customized according to your request ) |
out jacket material | LSZH ( can be PVC or LSZH ) |
insertion loss | ≤ 0.3dB |
return loss | ≥65 dB |
wave length | 1310/1550nm |
core type | 9/125um |
connector color | green |
ferrule material | Ceramic |
operater temperature | -40~ +85℃ |
cable print | standard print ( can customized ) |
OEM/ODM | acceptable |
warranty | 3 years after delivery |
Delivery time | 2-15 working days ( according to your quantity ) |
Features:
Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability
Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

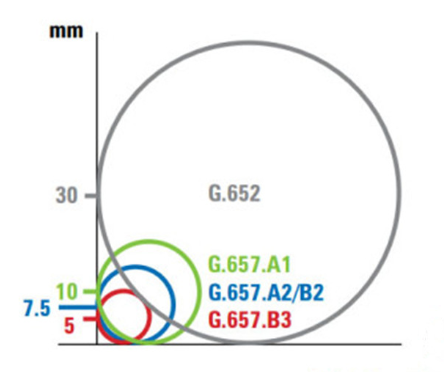

G657B3 bend radius
Connector type
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G657B2/G657B3 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
![]() |
