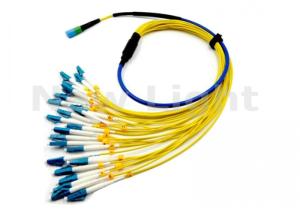

MPO - LC 1M Cross Connected 24 core single mode fiber optic cable with Length Optional

Name: MPO LC 1M Cross Connected 24 core single mode fiber optic cable with Length Optional
Brand: New Light
Price: 6 USD

Brand Name : New Light

Certification : CE

Place of Origin : China

MOQ : 1~10000

Price : 6~15

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per month

Delivery Time : within 2 weeks

Packaging Details : 1 piece per pack

Color : Yellow

Connector : MPO-LC

Name : MPO-LC optical patch cord

Mode : Single mode

Core : 24 cores

Length : Option

Contact Now

24 Core MPO-LC 1M Cross Connected Optical Fiber Patch Cord 24Cores MPO-LC Single Mode

Feature:

MPO series offers the solution from trunk cables to extended trunk cables, to hybrid trunk cables, to cassette modules, to MPO adapter panels, to direct patch panels, to patch panels in both MPO classification of G class(normal class) and L class(super low loss).

1. Utilize MPO/MTP Connectors

2. Rapid Deployment

3. Factory terminated

4.100% tested (test data supplied)

5. High density cable

6. Optimized performance

7. Compliant to directive 2002/95/EC (ROHS) and REACH SVHC

8. MPO connector complies with IEC-61754-7&AMP; EIA/TIA-604 -5

Specifications:

Model		SM	MM
Connector fiber count		8,12,24 Core
Polish		PC,APC	PC
color		Standard(Green),Elite(Yellow)	Standard(Beige),Elite(Aqua)
Inserting loss	Standard	≤0.7dB	≤0.5dB
	Elite low loss	≤0.3dB	≤0.3dB
Return loss		PC≥50dB,APC≥60dB	≥30dB
Durability(500 Mating)		≤0.2dB
Test wavelength		1310/1550nm	850/1310nm

Applications:

Data communication network

Optical system access network

Storage area networking fiber channel

High density architectures

MPO - LC 1M Cross Connected 24 core single mode fiber optic cable with Length Optional
