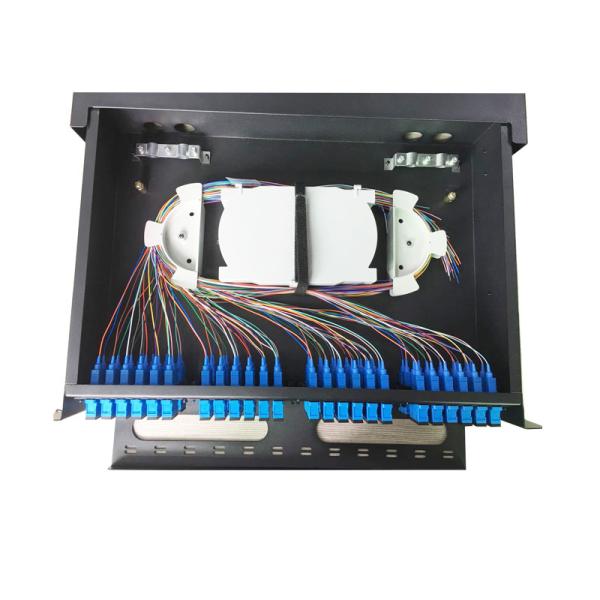

Rack Mounted MPO/MTP Fiber Optic Patch Panel 2U 3U 19 Inch 48/96 Fiber SPECC Material

Name: Rack Mounted MPOMTP Fiber Optic Patch Panel 2U 3U 19 Inch 4896 Fiber SPECC Material
Brand: New light
Price: 10 USD

Wholesale Rack Mounted MPO/MTP Fiber Optic Patch Panel 2U 3U 19 Inch 48/96 Fiber SPECC Material from china suppliers

Brand Name : New light

Model Number : 48F panel

Certification : ROHS ;ISO9001

Place of Origin : China

MOQ : 1~10000

Price : 10~100

Payment Terms : T/T, Western Union, MoneyGram ,Paypal

Supply Ability : 10000 per day

Delivery Time : 2-15 working days

Packaging Details : opp bag+Carton box

fiber : 24 / 48 /96 core

color : black

material : SPECC

Aplication : Data centers,pre-terminated installations

Adapter type : MPO / MTP adapter

Front panel : LC , SC , ST , FC , E2000

Size : 19 inch

Max capacity : From 12 fiber to 144 fiber

interface : powder coated

Product name : 24 fiber rack mounted MPO/MTP Fiber Optic Patch Panel

Tray : 12/24/48/72/96 core

Weight : 6kg

Contact Now

2U 3U 19 inch 48/96 fiber rack mounted MPO / MTP Fiber Optic Patch Panel

Product description:

The High Density fiber patch panels are designed to accommodate high density applications in Data Centers and Telecommunication environments. With pre-populated and tested Fiber Patch Panel saves on-site installation time and increase reliability. The design of enclosure allows for easy connection to the LC adapters using multi-fiber optical patch cords (sold separately) and is mountable in a standard 19in or 23in rack or cabinet frame.

This rack-mounted patch panel is compatible with both 19" racks, made of cold rolled steel sheet, electrostatic spraying, provide 12 to 48 single and double adapter, available for SC, FC, ST and Duplex LC.

Application:

1. Telecommunications subscriber loop

2. Fiber to the home (FTTH)

3. LAN/WAN

4. CATV

Features:

Used to the branch connection of optical cable termination

19'' Standard Structure, Rack mounting

Available for the installation of adaptors

Drawer Structure, Easy for Operation.

Compact design for space saving

Easy for management and operation

Standard size, light weight and reasonable structure

Mechanical and environmental characteristics:

Projects	Parameter
Operating temperature	-25℃~+40℃
Storage temperature	-25℃~+55℃
Relative humidity	≤85％(+30℃)
Air pressure	70Kpa~106Kpa
Color	Black

Dimension:

Model	MPO-LC Type Cassette Quantity	Height	Dimension(LxWxH)
MPO-LC	2	1U	430354.144mm

Rack Mounted MPO/MTP Fiber Optic Patch Panel 2U 3U 19 Inch 48/96 Fiber SPECC Material
